AMS-X
Besi has reinvented leadframe molding with the AMS-X, responding to the growing market demand for power products and higher densities on larger leadframes. The AMS-X sets a new industry benchmark with its innovative design and performance.
Featuring newly developed plate presses, the AMS-X boasts an extremely compact and rigid construction. Each press includes four clamp modules that deliver high and even clamp force around the product, ensuring a bleed-free end result.
With its modern UX design, the AMS-X is also the most user-friendly molding system Besi has ever produced, combining advanced technology with intuitive operation.
More informationThis link leads to an external website.
1,800 kN Clamp force
125 x 300 mm Leadframe size
15 MPa Transfer pressure
±2 °C Temperature
Description

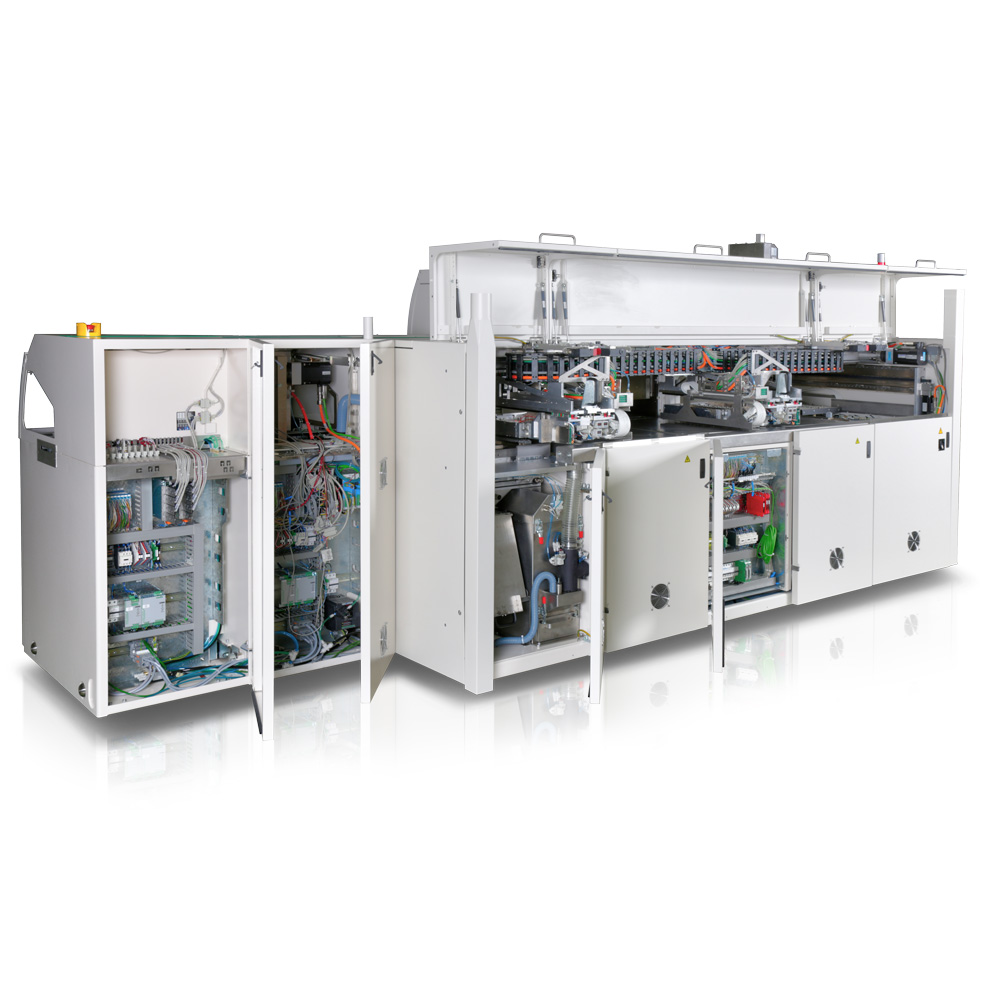

Universal platform

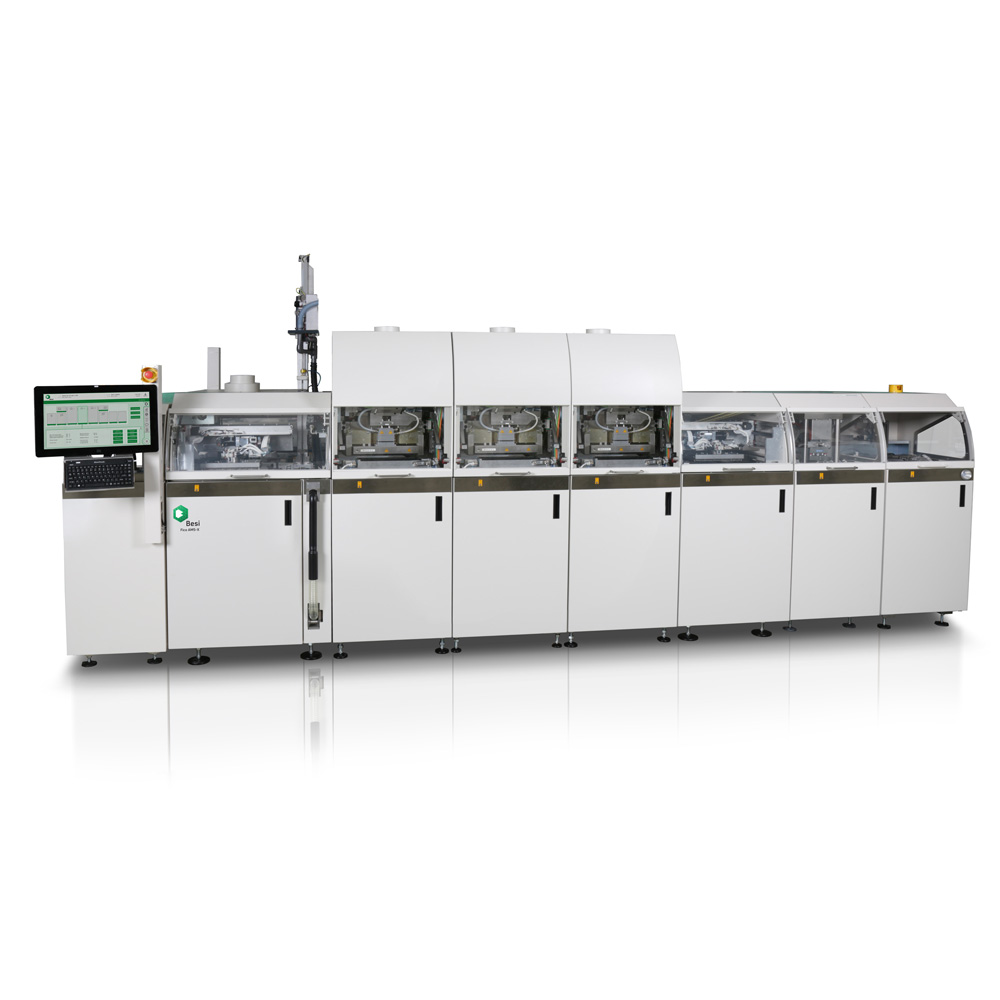

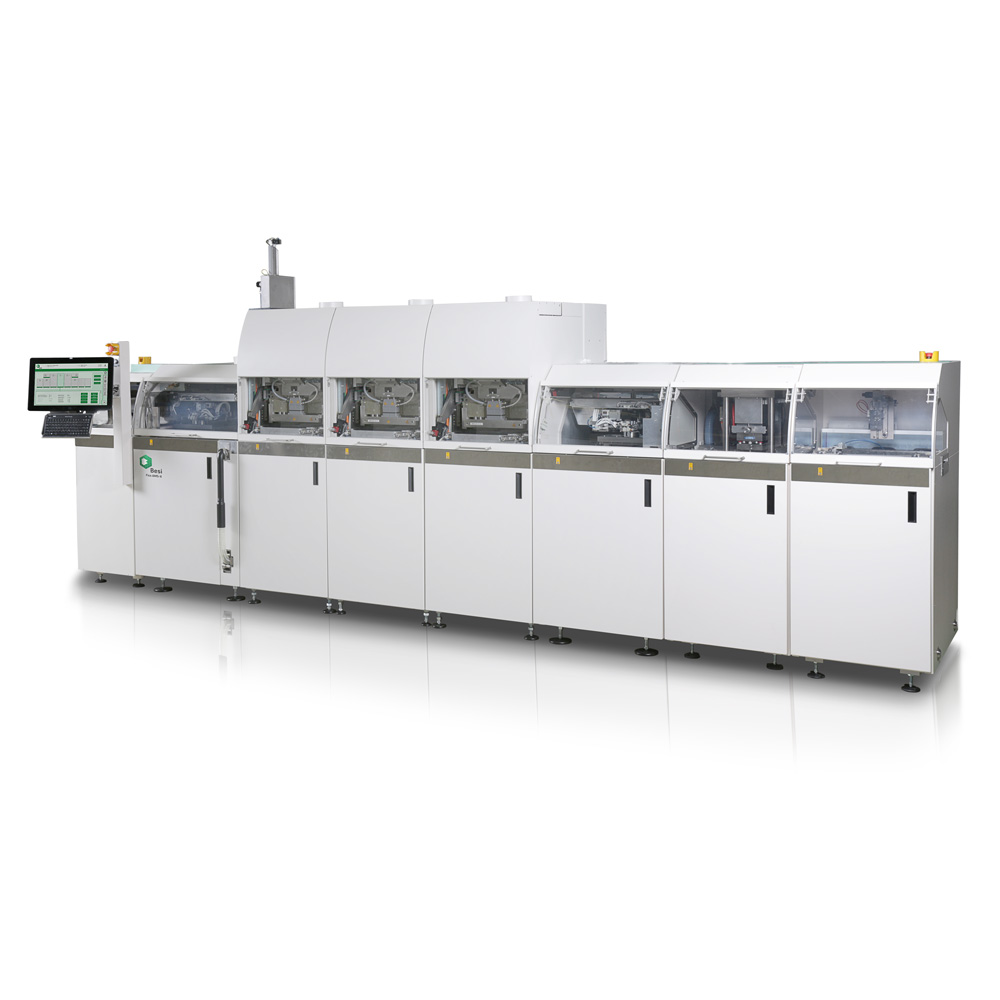

The AMS-X is built around its core, consisting of an Infeed Module, 3 Molding Presses and an Outfeed Module. This universal platform can be completed by adding a variety of modules, including different loading and offloading modules, as well as a wide selection of modules designed to process both unmolded and molded leadframes.
Key features
Explore all features of the AMS-X
General features
- Up to 30% higher output than competition
- Low Cost of Ownership – with latest state of the art technology
- Flash free – patented clamping mechanism
- High quality molding – full process control, dynamic clamping
- Low compound usage – unique runner design
- Suited for High Density and Power products
- Zero defect – 100% infeed and outfeed vision inspection possible
- Clean room class 1000

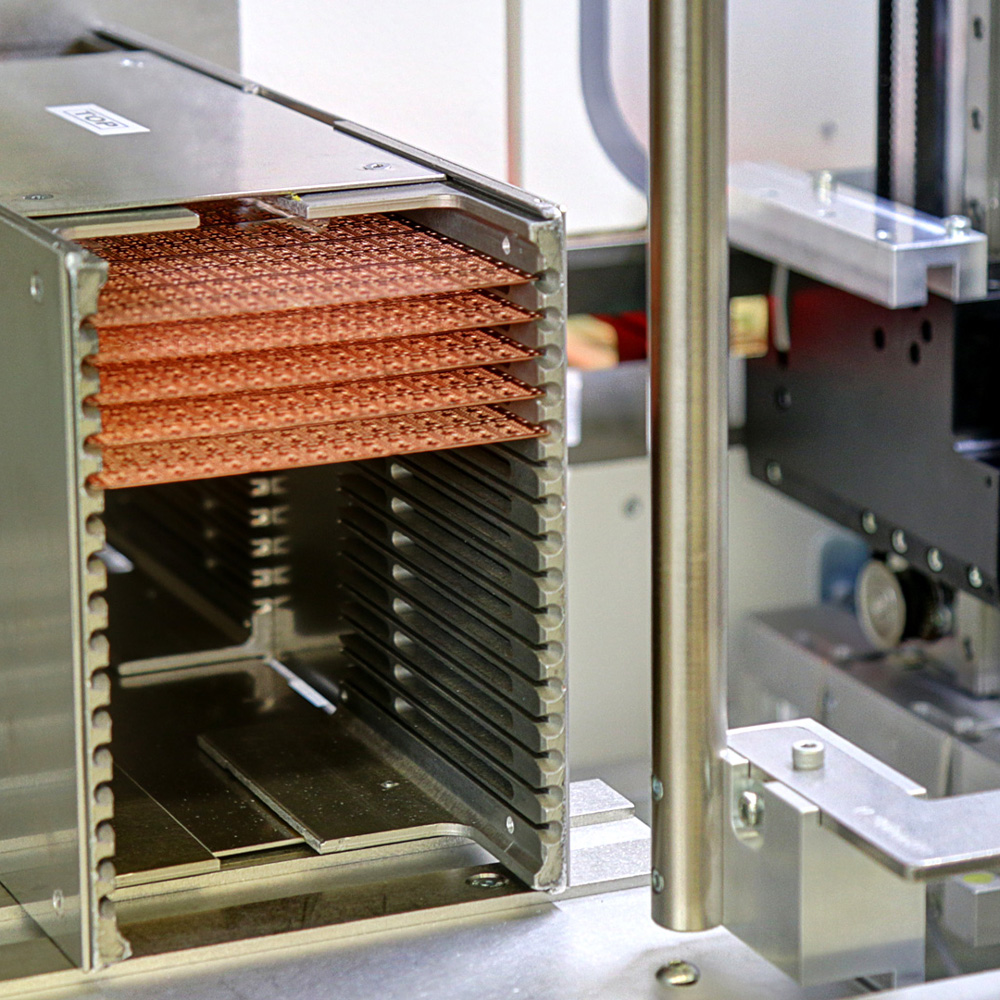

Slotted Magazine Loader
- High capacity
- Freely accessible

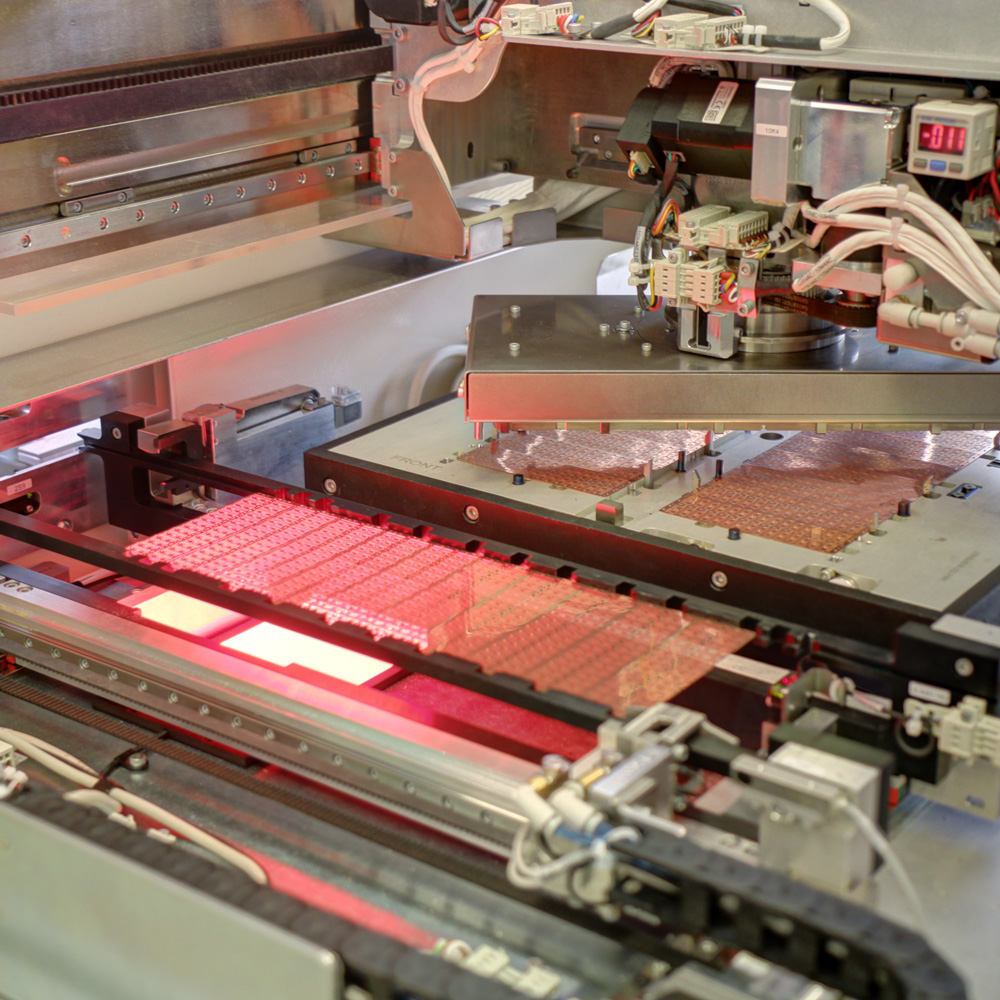

Infeed module

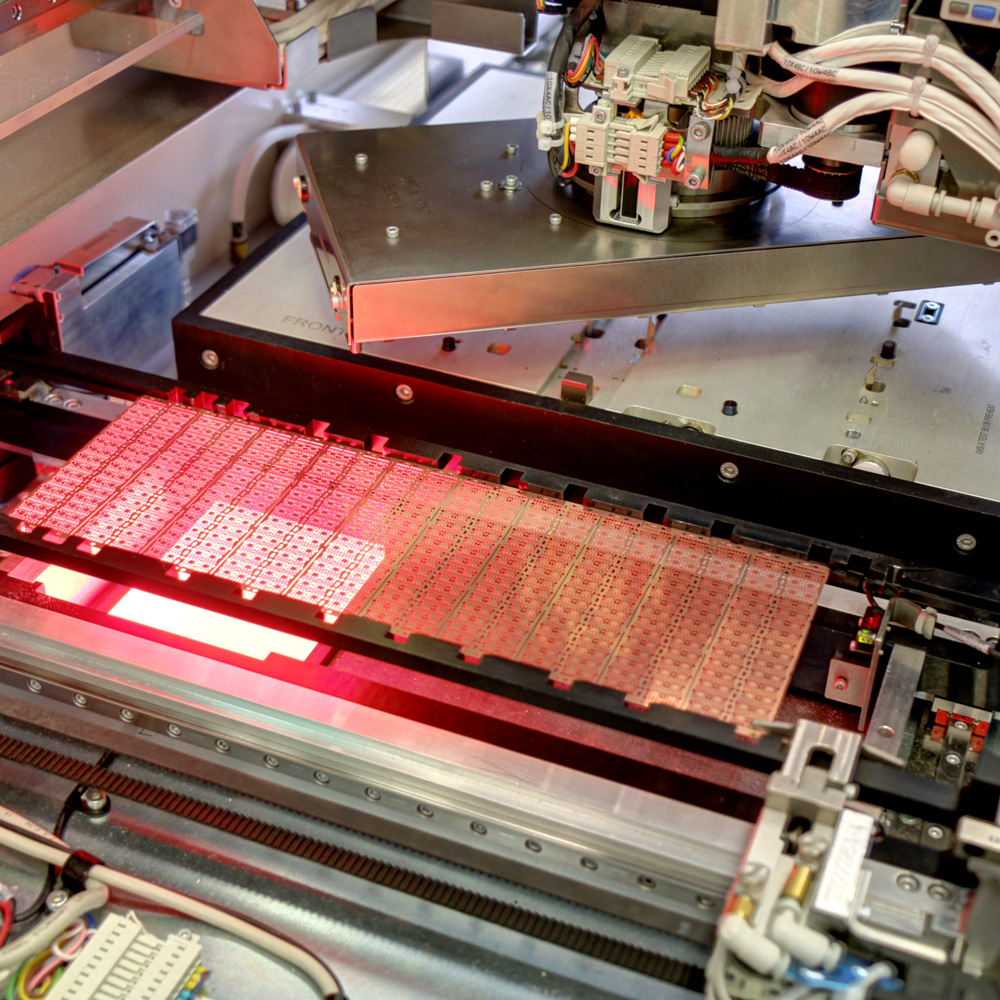

- Strip orientation check
- Automatic orientation correction
- Strip pre-heating

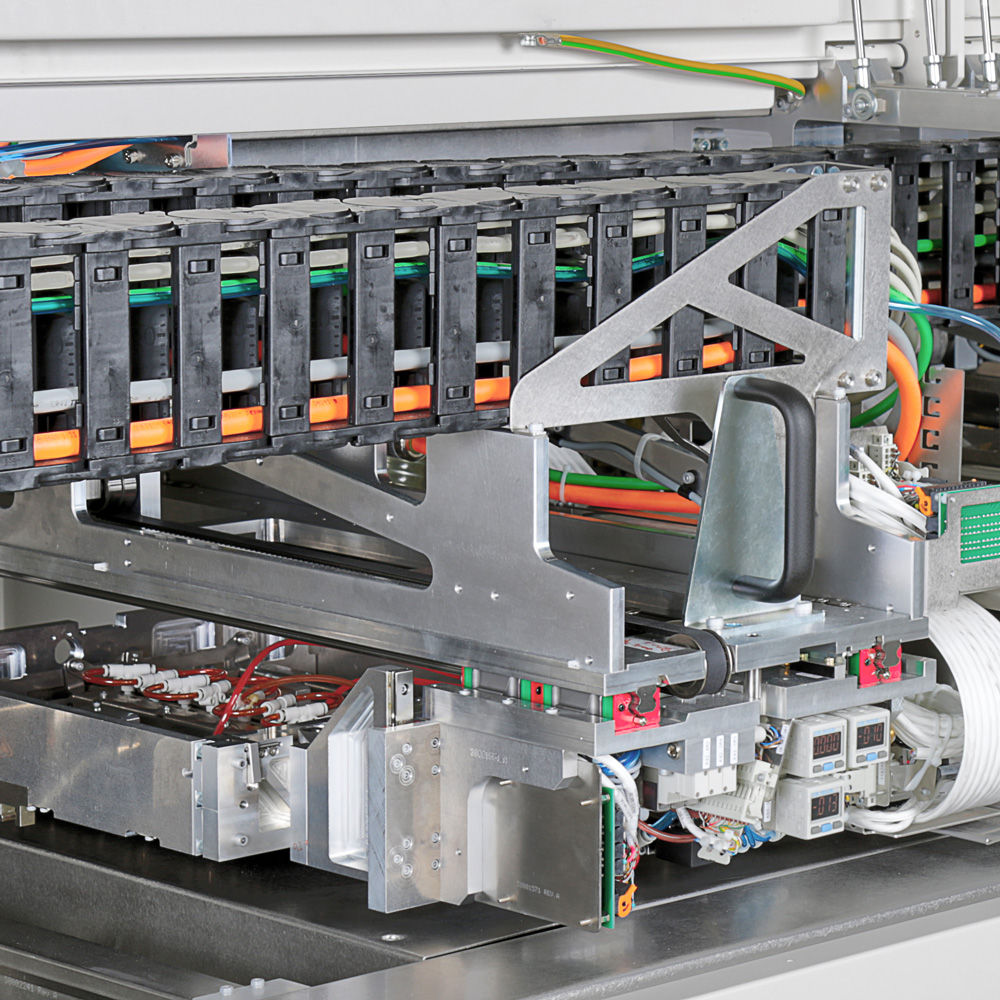

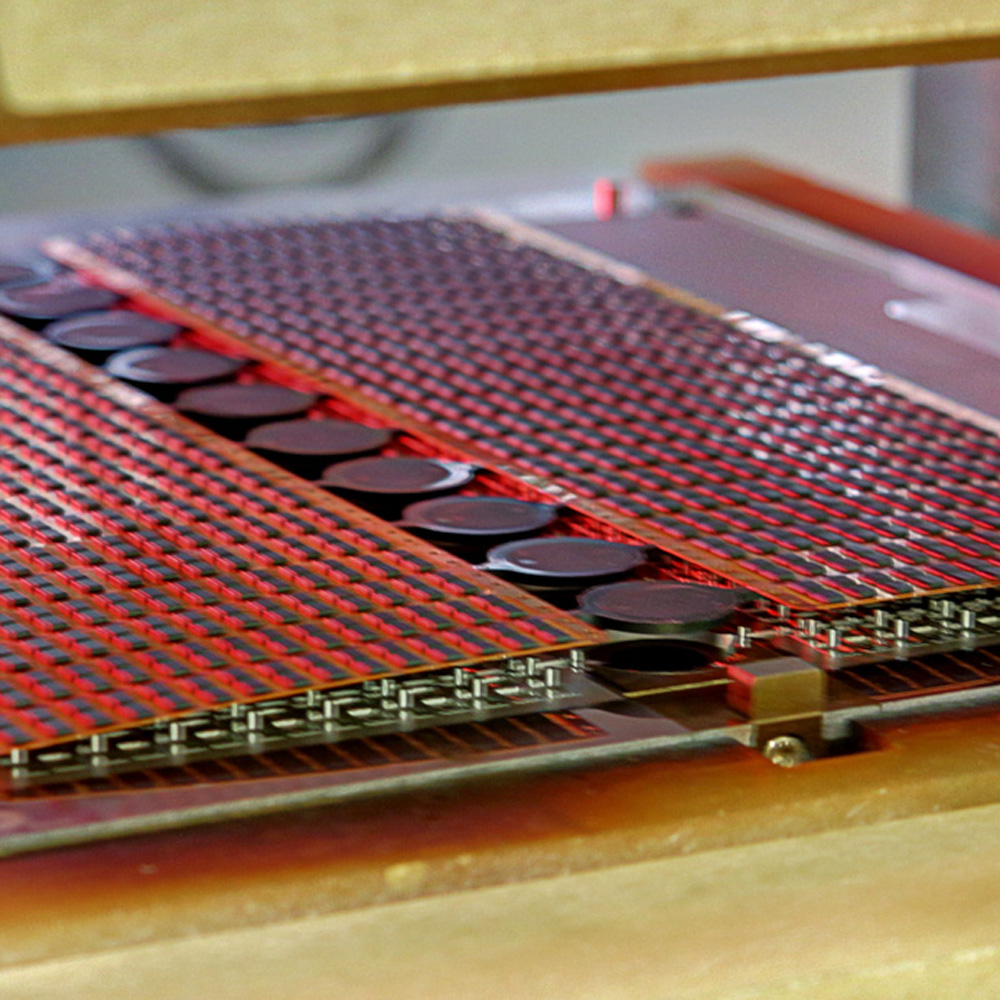

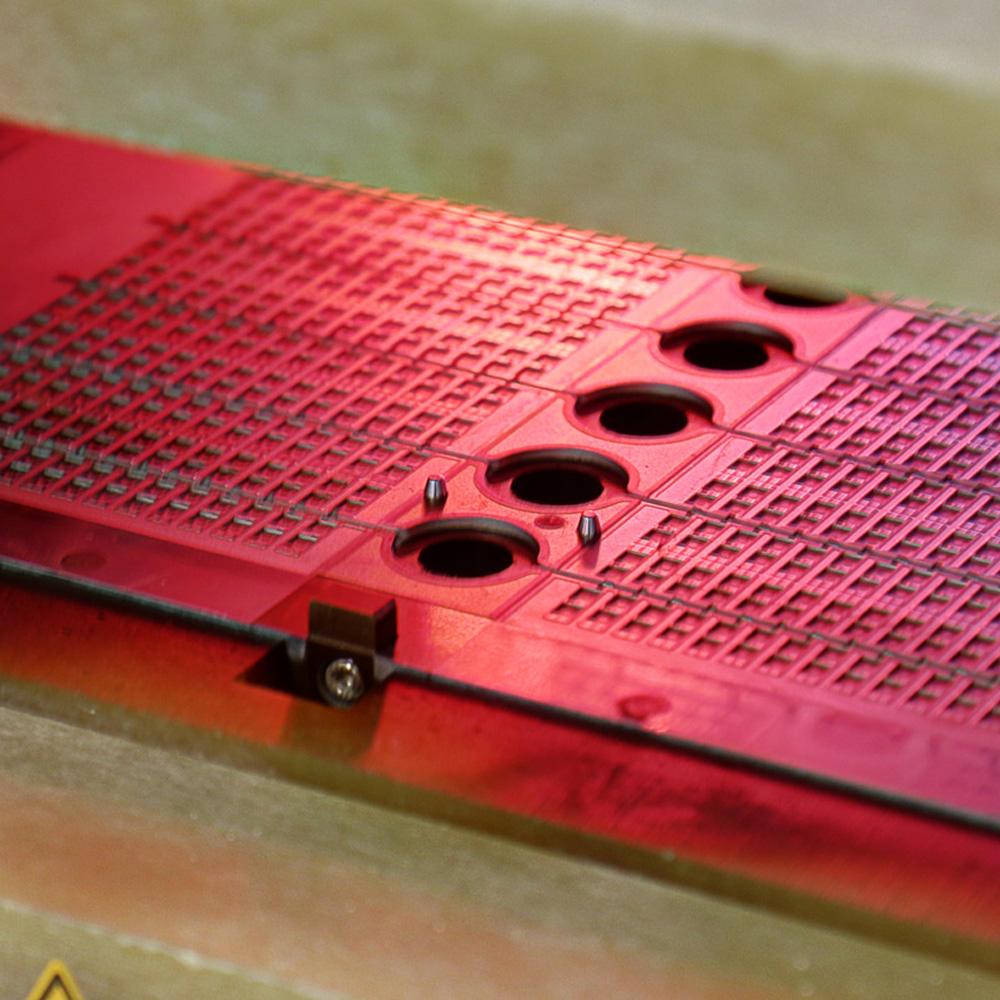

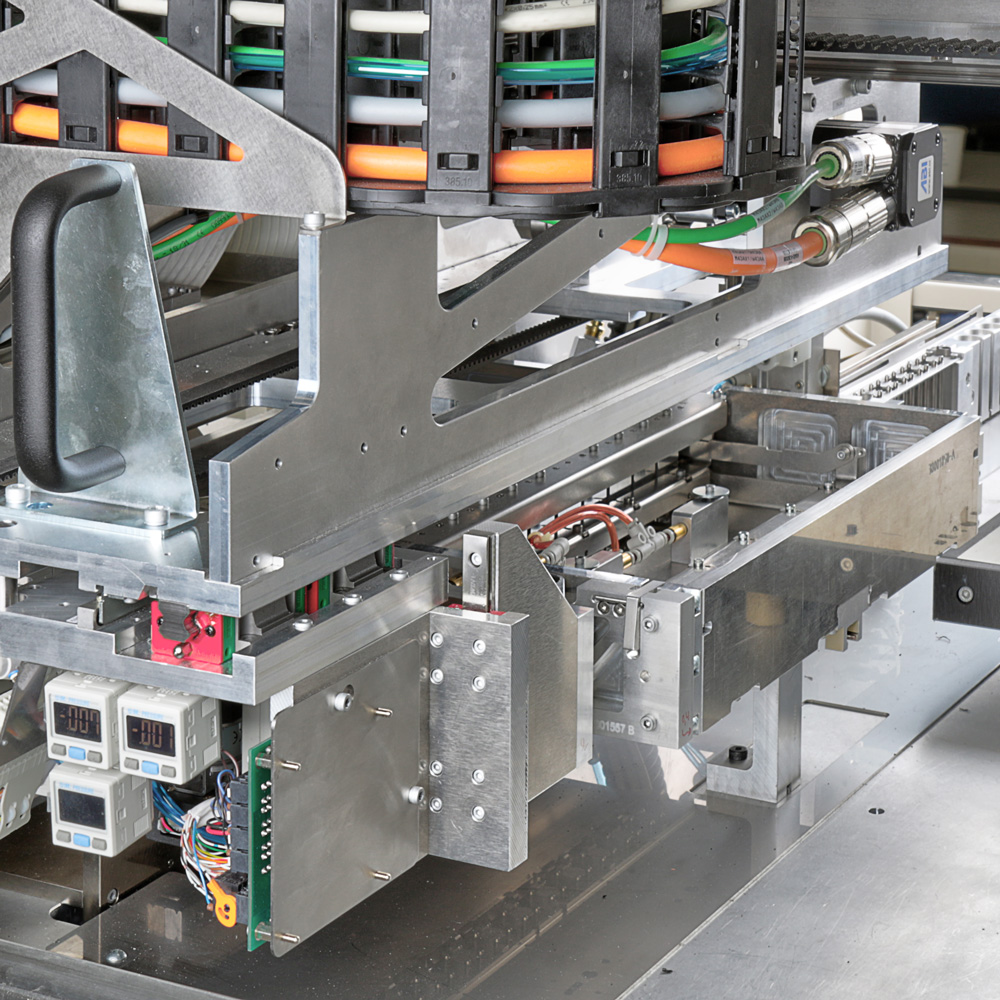

Molding Press
- High clamp force
- Recipe controlled deep vacuum level
- Individually controlled 4-section clamp cylinders (optimal and equal substrate clamping)
- Even mold cap planarity

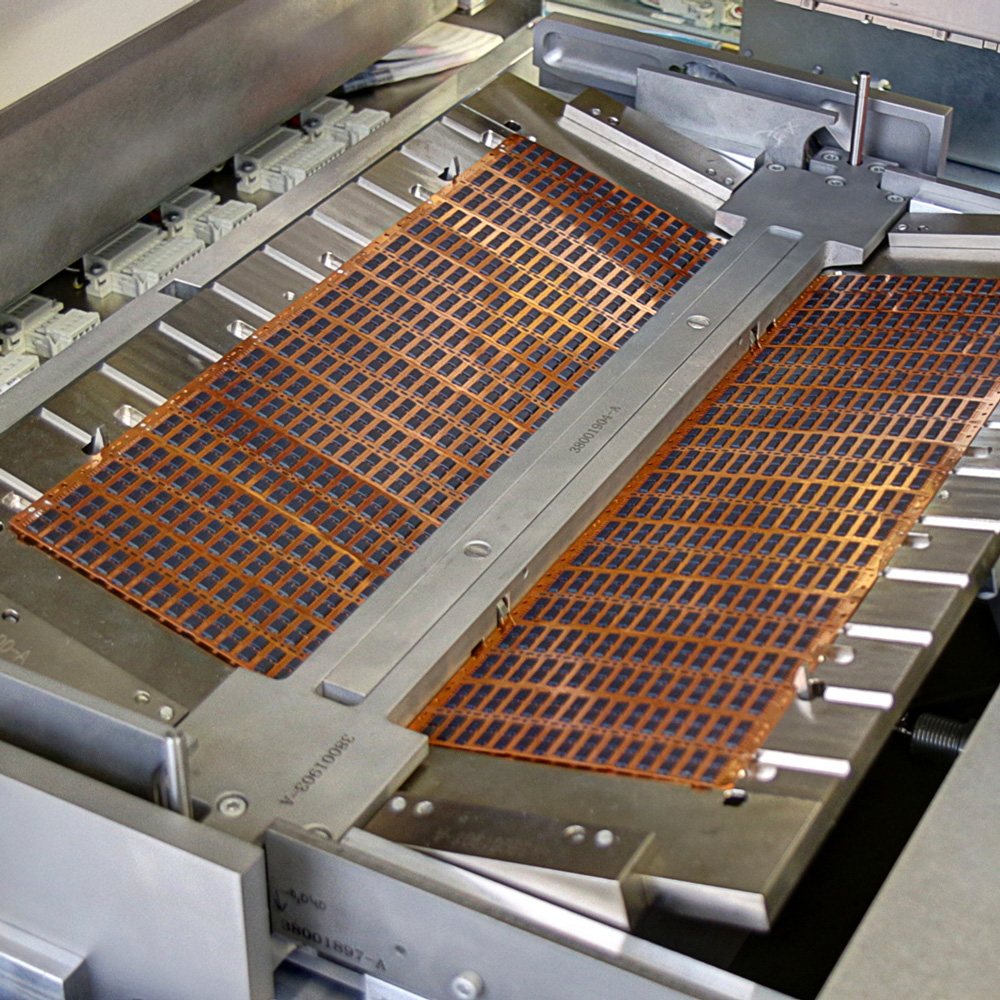

Outfeed module
- Integrated butterfly degating
- Large capacity central exhaust pump
- Double filter with blow back cleaning
FCL-X Press
- Sub-runner removal with standard Fico Compact Line – X press
- Compact tool
- High press force: 50 kN (6.6 Joule)
- Optical contactless safety pin detection
- High airflow (vacuum and/or compressed air) in tool
- Dedicated exhaust system
- Easy tool exchange
- RFID tool recognition
Dual Stack Magazine Handler
- Dual stack with automatic magazine rotation
- Servo motor controlled leadframe pusher
- Very short leadframe travel
- Closed magazine bottom handling (option)
Pellet feed
- Remote pellet feed (up to 40m)
- Pellet length check
- Pellet cooling
- Pellet age control
Specifications
The AMS-X in numbers
Machine dimensions
| Width | 5,160 mm |
| Depth | 1,500 mm |
| Height | 1,800 mm |
| Weight | Approx. 9,500 kg |
* Base dimensions of the system, without protrusions like exhaust, hand grips and HMI support.
Leadframe dimensions
| Width | Max. 125 mm |
| Length | Max. 300 mm |
| Thickness | Max. 10 mm |
Magazine dimensions
| Width | 25 – 160 mm |
| Length | 170 – 300 mm |
| Height | 100 – 240 mm |
| Storage capacity | 600 mm |
Supply Requirements
| Voltage | 208-230-380-400-440-460-480VAC – 3~ |
| Frequency | 50 / 60 Hz |
| Power consumption | 14 kVA |
| Compressed air | 4.5 – 9 bar |
| Average air consumption | 5 m3/h at 6 bar |
| Factory exhaust | 2,000 m3/h |
Press and Mold Properties
| Max. clamp force | 1,800 kN (180 ton) |
| Max. mold opening | 150 mm |
| Max. transfer pressure | 15 MPa (150 bar) |
| Pellet diameter | 14, 14.3, 16 or 18 mm |
| Max. number of plungers | 12 |
| Max. cavity temperature difference | ± 2 ºC |
