Fico AMS-LM Top Foil

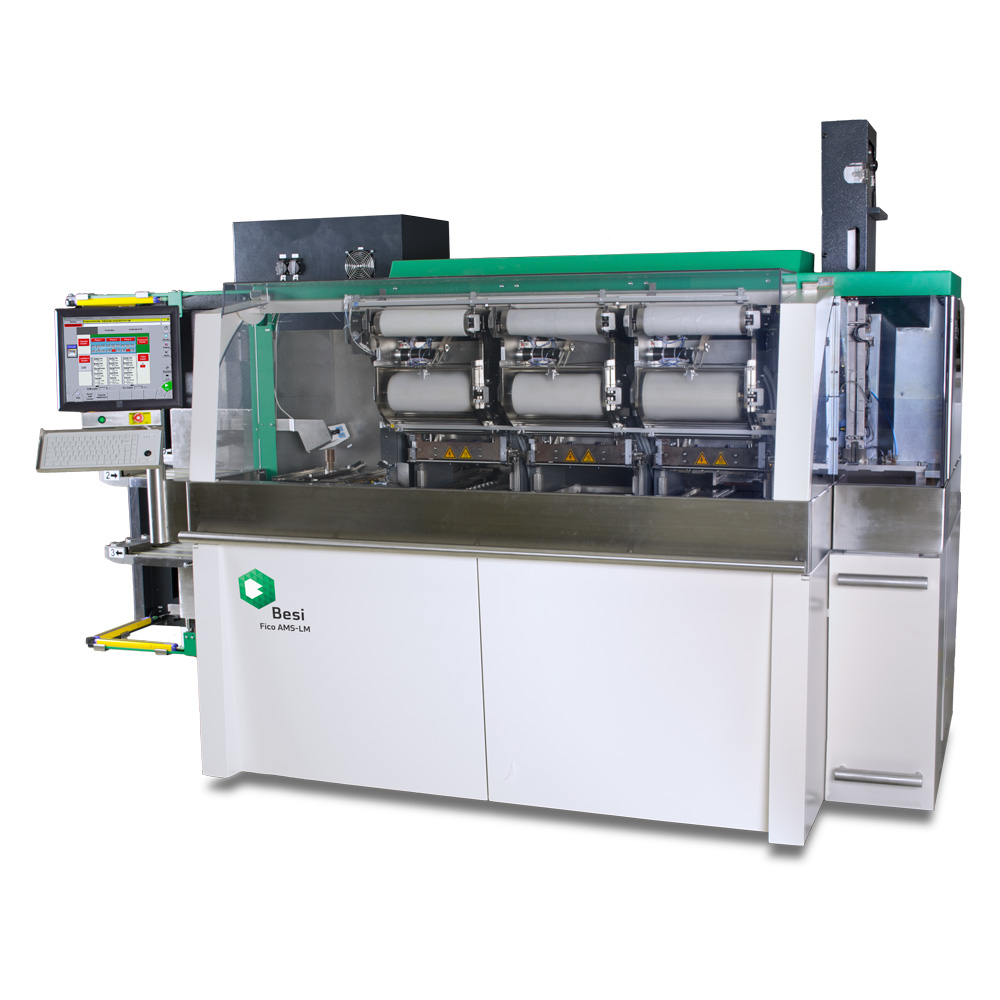

Besi presents the 3rd generation large substrate molding machine featuring innovative Top Foil functionality. Designed to mold single-sided MAP products such as BGA, QFN, and BOC, the Fico AMS-LM ensures bleed-free production of bare die products.

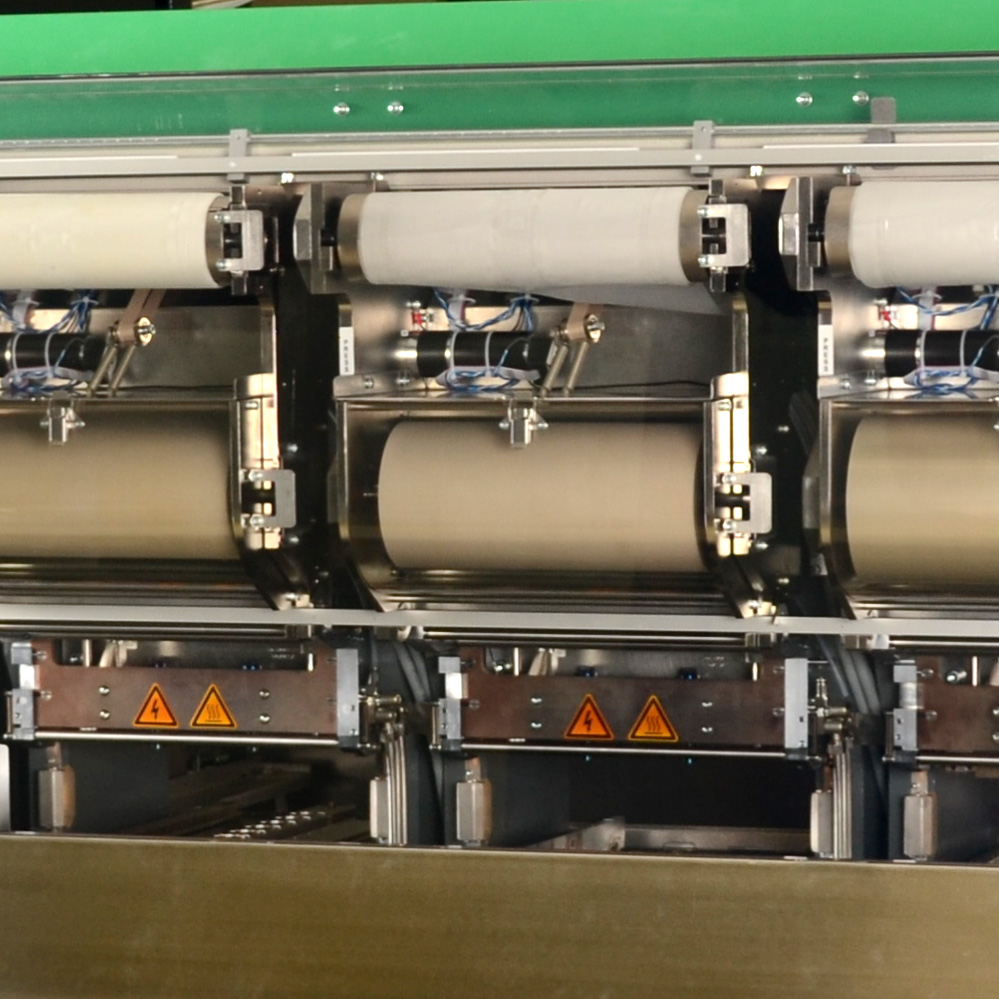

A special foil creates a soft sealing layer between the mold and the product, keeping the die free from compound contamination. This eliminates the additional cleaning step after molding, enhancing efficiency and product quality. The Fico AMS-LM Top Foil supports substrates up to 102 x 280 mm and accommodates all current single-sided package designs.
More informationThis link leads to an external website.
102 x 280 mm Strip size
35% Less moving parts
Exposed die Bleed free
> 200 h MTBF
Key features
Explore all features of the Fico AMS-LM Top Foil
Cassette Handler
- High capacity
- Freely accessible
- Slot to slot copy
- Two or four deck version
- Bar code, 2D code and RFID reader (optional)

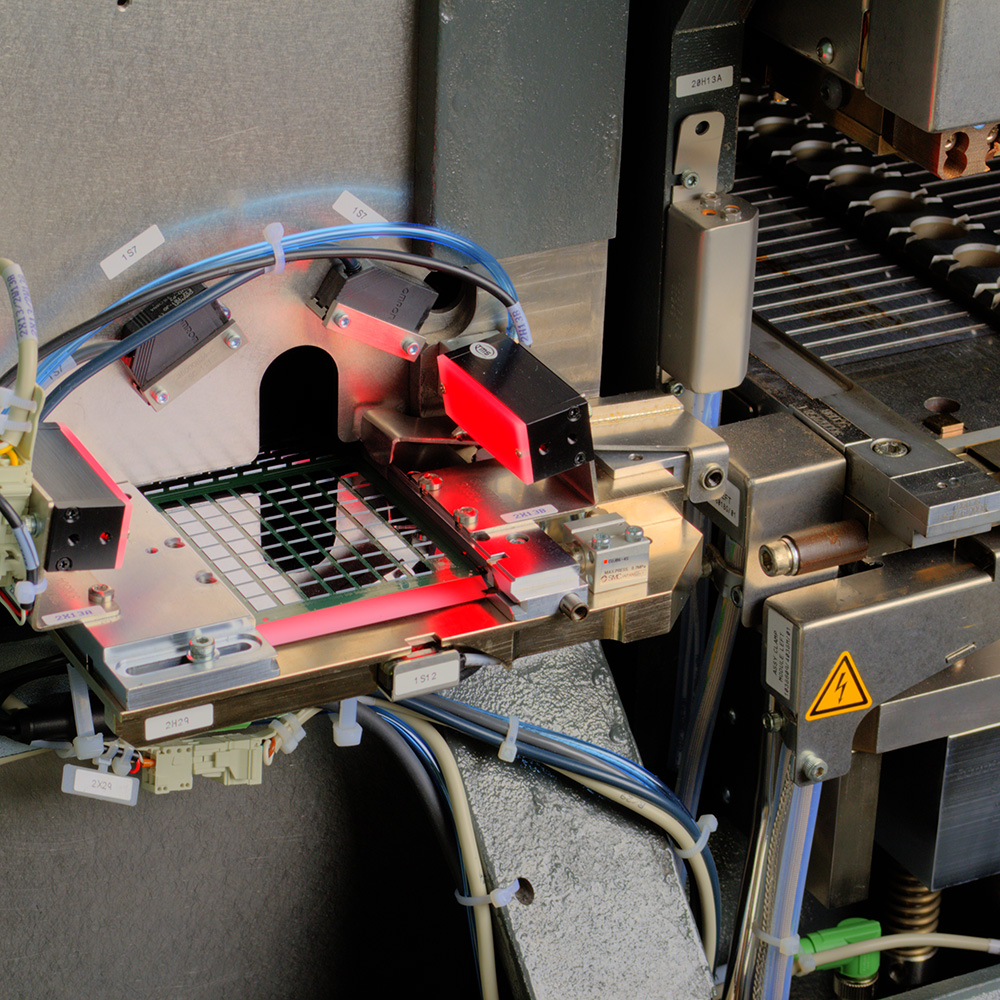

Vision
- Leadframe orientation check
- Mark inspection, bar code and 2D code check
- Optical Character Verification (OCV)
Leadframe Handler
- Automatic orientation correction
- Leadframe pre-heating
- Anti warpage leadframe cooling
- Air cushion transport
- Thin board handling

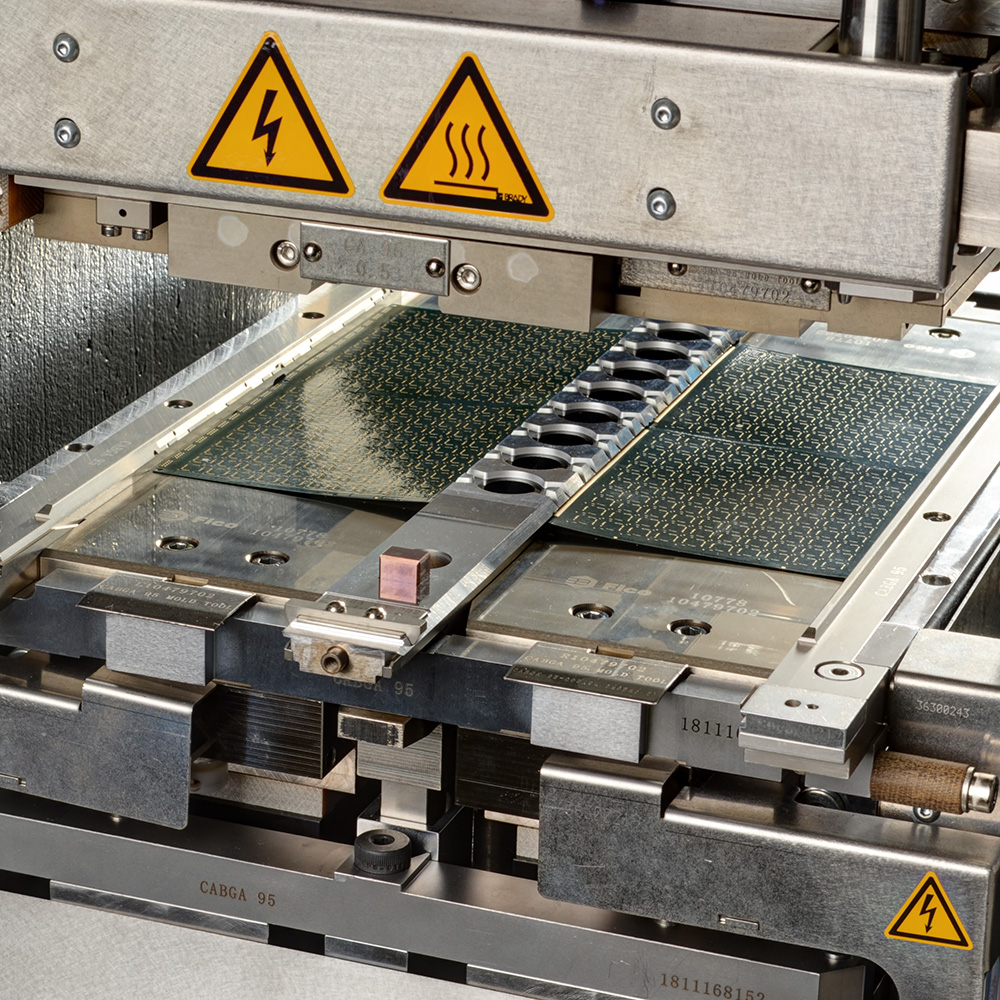

Molding Press
- Large substrate molding
- Top Foil
- Topedge molding (low viscosity compounds)
- Adjustable high clamping force
- Dynamic Clamping Control (Selective Molding & Flip Chip Exposed Die Molding)
- 17 process patents
- Board and cavity vacuum
- Individual, equal board clamping

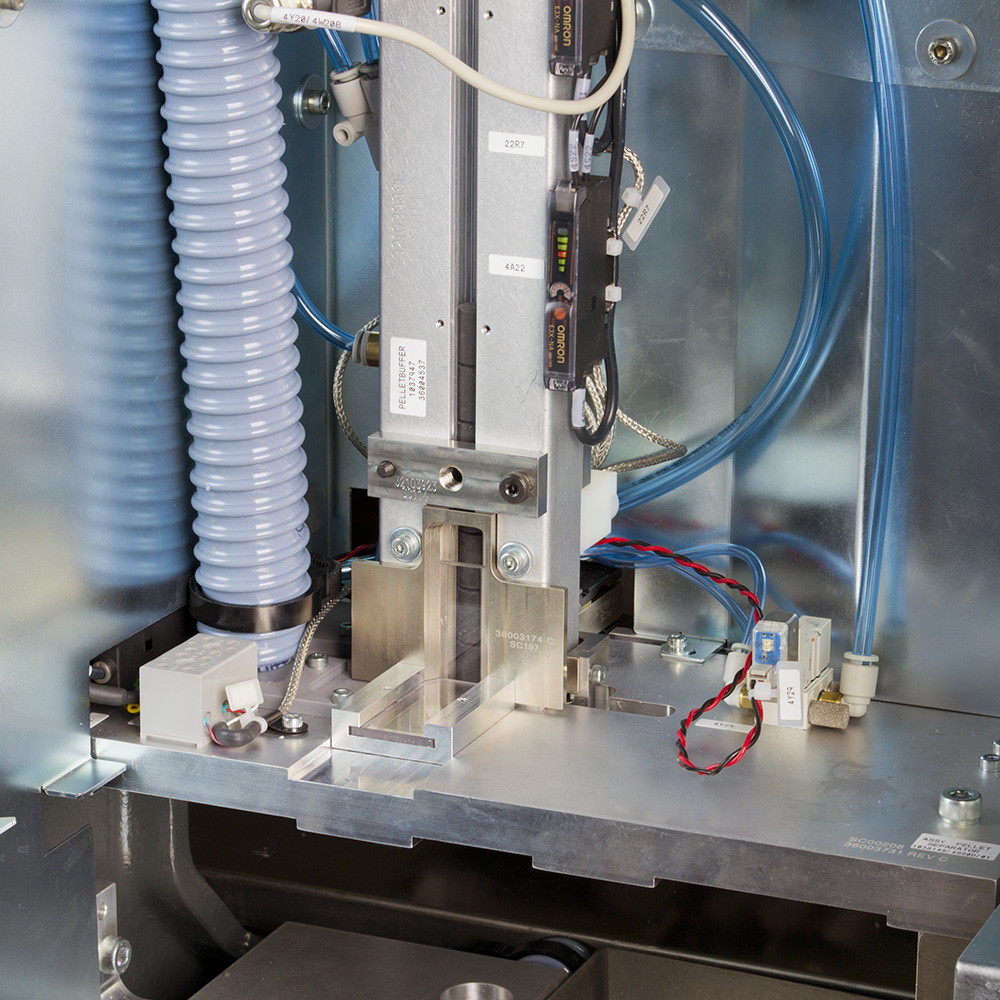

Pellet Supply
- Remote pellet feed (up to 40m)
- Pellet length check
- Pellet cooling
- Pellet age control
Specifications
The Fico AMS-LM Top Foil in numbers
Machine dimensions
| Width | 3,145 mm |
| Depth | 1,652 mm |
| Height | 1,976 mm |
| Weight | Approx. 3,600 kg |
Leadframe dimensions
| Width | 72 – 102 mm |
| Length | 100 – 280 mm |
| Thickness | 0.1 – 1.5 mm |
| Height | Max. 2 mm |
Magazine dimensions
| Width | 80 – 120 mm |
| Length | 180 – 300 mm |
| Height | 100 – 165 mm |
| Storage capacity | 800 mm |
Supply Requirements
| Voltage | 208-230-380-400-440-460-480VAC – 3~ |
| Frequency | 50 / 60 Hz |
| Power rating | 9 kVA |
| Compressed air | 5 – 10 bar |
| Average air consumption | 6 m3/h at 6 bar |
| Factory exhaust | 1,000 m3/h @ 50 Hz |
Equipment performance
| Uptime | ≥ 98% |
| Max. throughput | ca. 250 lf/h |
| MTBF | ≥ 200 h for every MTTR of 1 h |
| MTBA | ≥ 3 h |
| MTTR | ≤ 1 h |
| MTTA | ≤ 3 min |
Press and Mold Properties
| Max. clamp force | 600 kN (60 ton) |
| Max. mold opening | 90 mm |
| Max. transfer pressure | 18 MPa (180 bar) |
| Pellet diameter | 11, 14 or 14.3 mm |
| Number of plungers | 10 |
| Max. cavity temperature difference | ± 2 ºC |
