Fico MMS-i

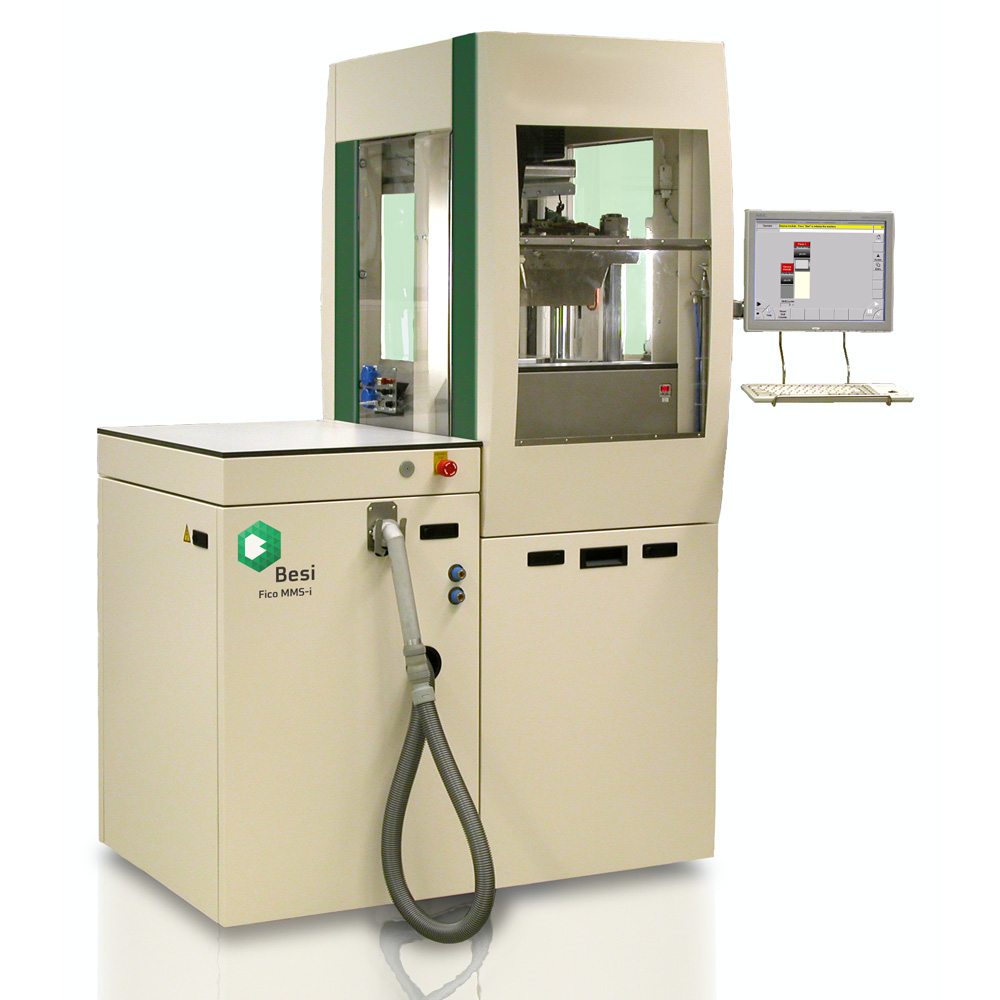

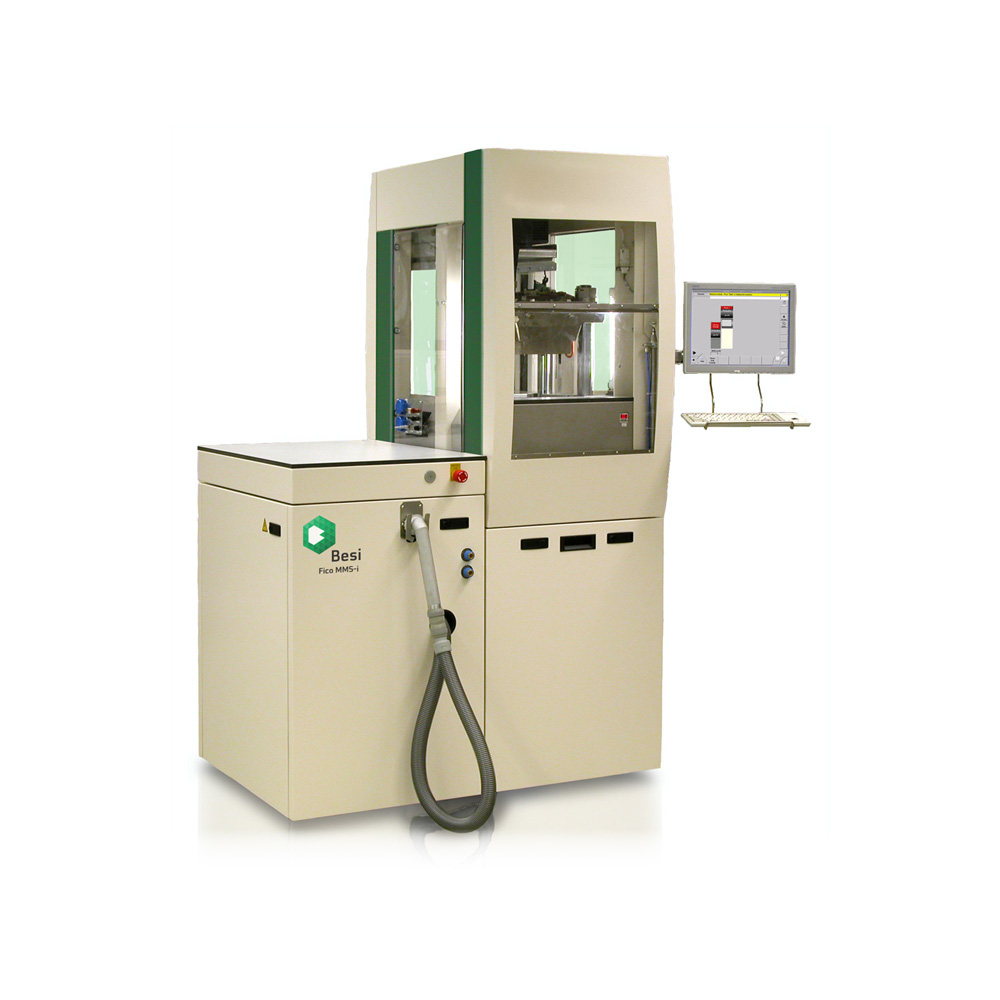

The Fico MMS-i is the manual, single-press version of the fully automatic Fico AMS-i molding system.

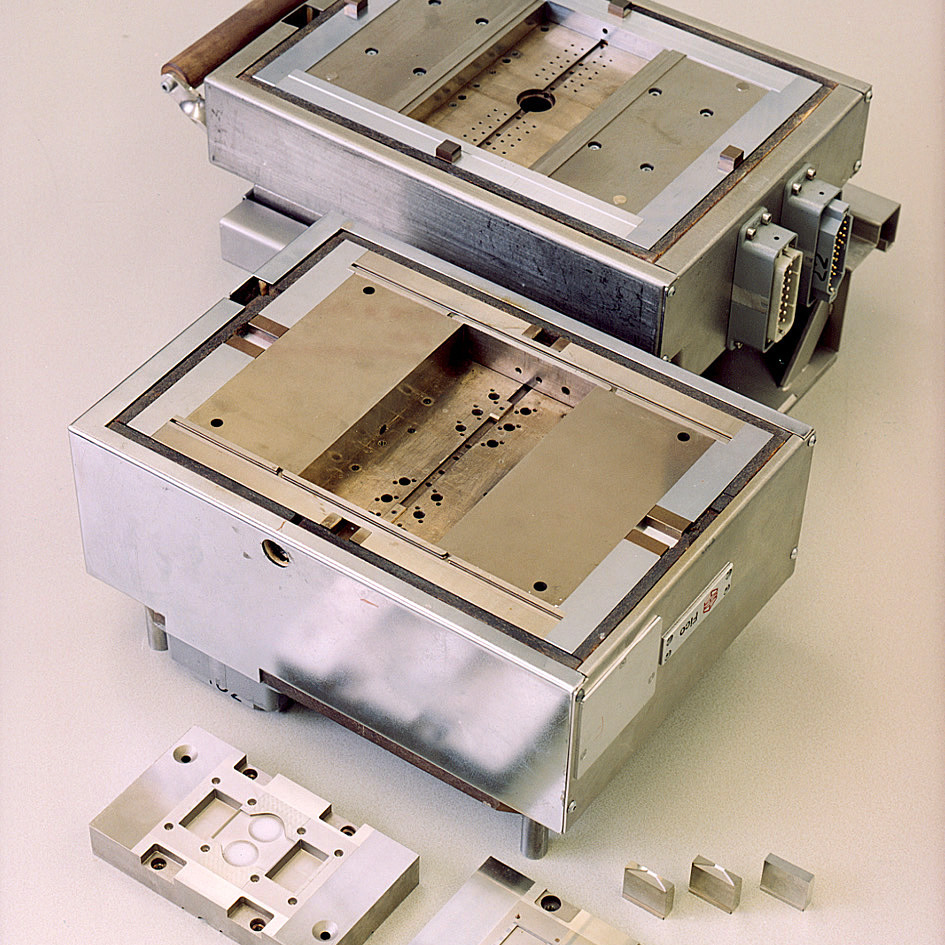

Designed specifically for molding process parameter optimization, it allows new products to be developed and fine-tuned using test molds before scaling up to large-scale production.
Additionally, the Fico MMS-i is ideal for small production batches and offline mold cleaning for molds used in the Fico AMS-i.
More informationThis link leads to an external website.
1800 kN Clamp force
125 x 300 mm Leadframe size
up to 240 lf/h UPH
±2 °C Temperature
Key features
Explore all features of the Fico MMS-i
General features
- 90 ton press station
- Cavity vacuum
- Hand vacuum cleaner
- Automatic tool ID
- Multi voltage input transformer
- Ergonomic design
Specifications
The Fico MMS-i in numbers
Machine dimensions
| Width | 1,210 mm |
| Depth | 858 mm |
| Height | 2,004 mm |
| Weight | Approx. 1,400 kg |
Leadframe dimensions
| Width | Max. 75 mm |
| Length | Max. 280 mm |
Supply Requirements
| Voltage | 208-230-380-400-440-460-480VAC – 3~ |
| Frequency | 50 / 60 Hz |
| Power consumption | 8.5 kVA |
| Compressed air | 5 – 10 bar |
| Average air consumption | 1.5 m3/h at 6 bar |
| Factory exhaust | 600 m3/h at 50 Hz |
Press and Mold Properties
| Max. clamp force | 900 kN (90 ton) |
| Max. mold opening | 124 mm |
| Max. transfer pressure | 12 MPa (120 bar) |
| Pellet diameter | 11, 14 or 14.3 mm |
| Max. number of plungers | 10 |
| Max. cavity temperature difference | ± 2 ºC |
Options
Available options on the Fico MMS-i
Options
- Board vacuum
- Final transfer pressure control
- Manual foil handling
- Mold transport carrier
- Mold preheat station

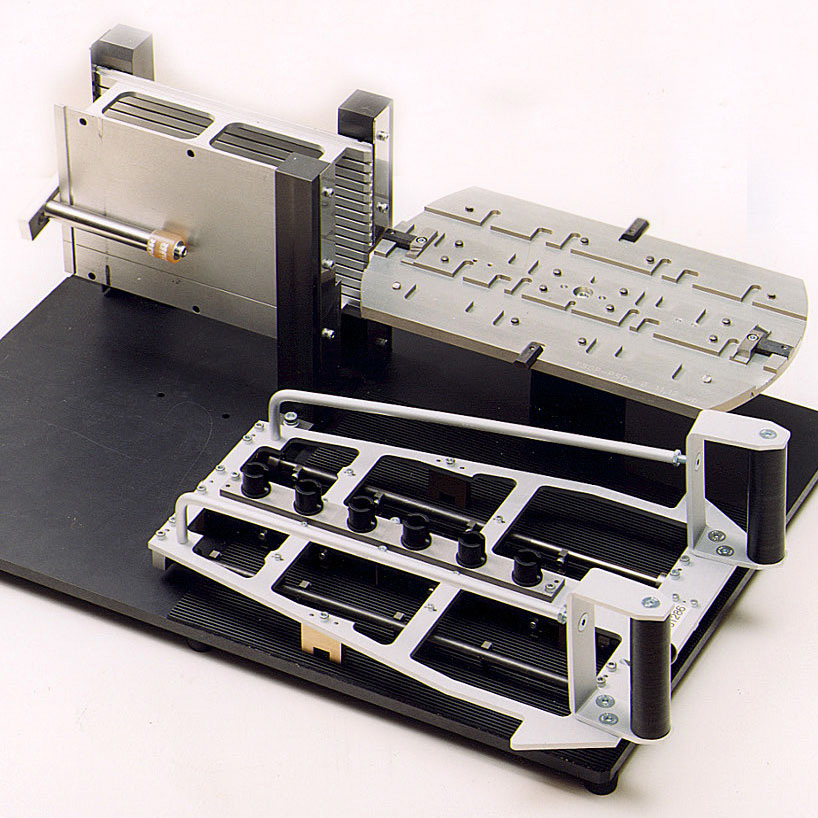

- Manual pellet loader
- Manual pellet and leadframe loader
