Fico MMS-LM

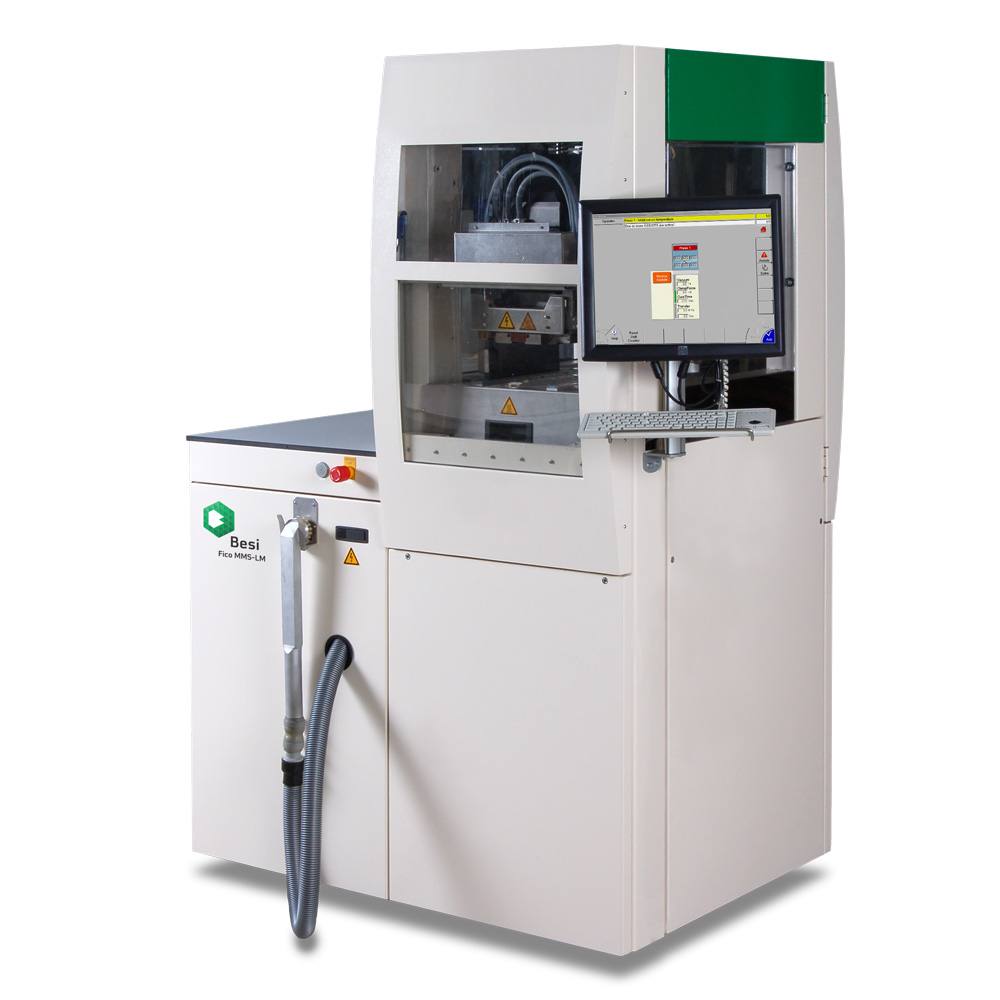

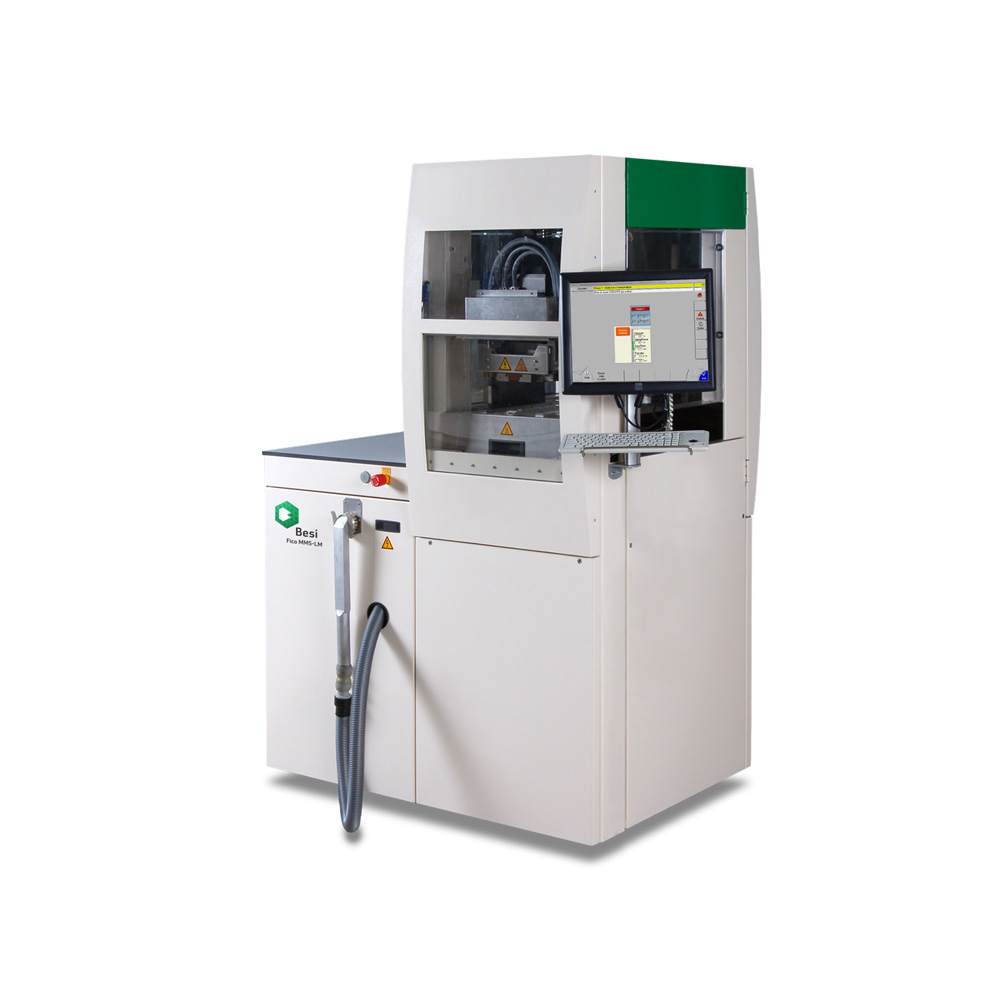

The Fico MMS-LM is a dedicated molding system designed for single-sided MAP products such as BGA and QFN. Developed specifically for small production batches and molding process parameter optimization, it allows new products to be developed and fine-tuned using original molds before scaling up to large production volumes.
The Fico MMS-LM’s intuitive design enables fast introduction of new products using test molds. Like its automatic counterpart, it supports V-pin molds, which, especially when combined with high vacuum, provide precise control over cavity vacuum for superior molding results.
More informationThis link leads to an external website.
102 x 280 mm Strip size
1 m2 Small footprint
max. 750 kN Clamp force
18 MPa Transfer pressure
Key features
Explore all features of the Fico MMS-LM
Key Features
- Top edge molding
- 60 or 75 ton press station
- Cavity vacuum control
- Board vacuum
- Adaptive clamping
- Transfer pressure control
- Dynamic clamping control
- Recipe transfer to automatic system
- Suited for process parameter optimization
- Suited for small production batches
- Test mold capability
- Different mold types available
- Built in vacuum cleaner
Specifications
The Fico MMS-LM in numbers
Machine dimensions
| Width | 1,210 mm |
| Depth | 1,020 mm |
| Height | 2,012 mm |
| Weight | Approx. 850 kg |
Leadframe dimensions
| Width | 72 – 102 mm |
| Length | 100 – 280 mm |
| Thickness | 0.1 – 1.5 mm |
| Height | Max. 2 mm |
Supply Requirements
| Voltage | 208-230-380-400-440-460-480VAC – 3~ |
| Frequency | 50 / 60 Hz |
| Power rating | 7.5 kVA |
| Compressed air | 5 – 10 bar |
| Average air consumption | 1.5 m3/h at 6 bar |
| Factory exhaust | 300 m3/h @ 50 Hz |
Press and Mold Properties
| Max. clamp force | 750 kN (75 ton) |
| Max. mold opening | 90 mm |
| Max. transfer pressure | 18 MPa (180 bar) |
| Pellet diameter | 11, 14 or 14.3 mm |
| Max. pellet length | 45 mm |
| Number of plungers | 10 |
| Max. cavity temperature difference | ± 2 ºC |
