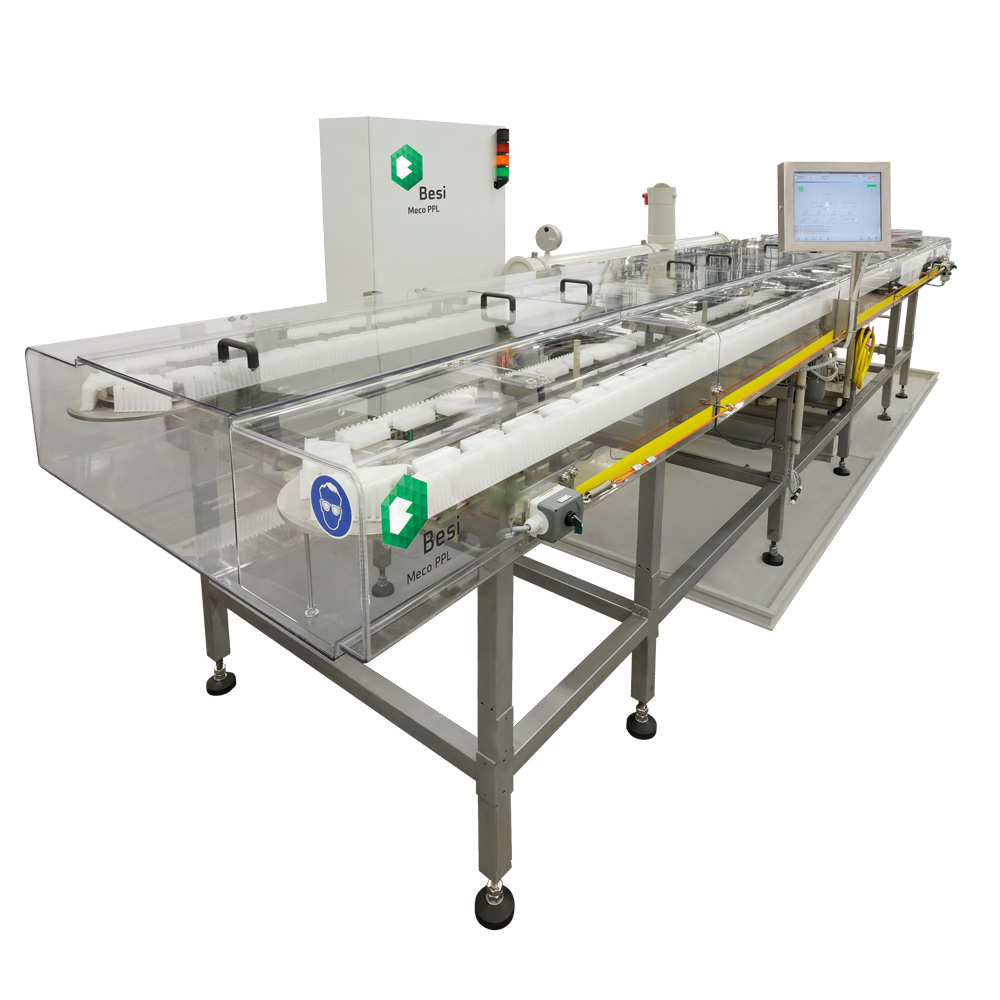

Meco PPL
The Meco Panel Plating Line (PPL) electroplates a sub-micron layer of copper, indium, and gallium onto glass substrates to form the absorber layers of CIGS thin-film solar cells.
Electrochemical deposition offers significant advantages over vacuum deposition, including nearly 100% metal utilization, no need for vacuum conditions, a smaller footprint, and reduced facility requirements.
To advance high-efficiency CIGS solar cells via electrochemical deposition, Meco collaborates with the Solliance Initiative.
More informationThis link leads to an external website.
600 x 1,200 Substrate size
Glass panel Substrate
20 - 25 MW Capacity
Mo / Cu Seed layer
Key features
The Meco Panel Plating Line solution
| Substrate | Glass panel |
| Seed layer | Mo / Cu |
| Substrate size | 600 x 1,200 mm |
| Substrate thickness | 2.8 – 3.5 mm |
| Metal options | Cu, In and Ga |
| Production capacity | 20 – 25 MW |

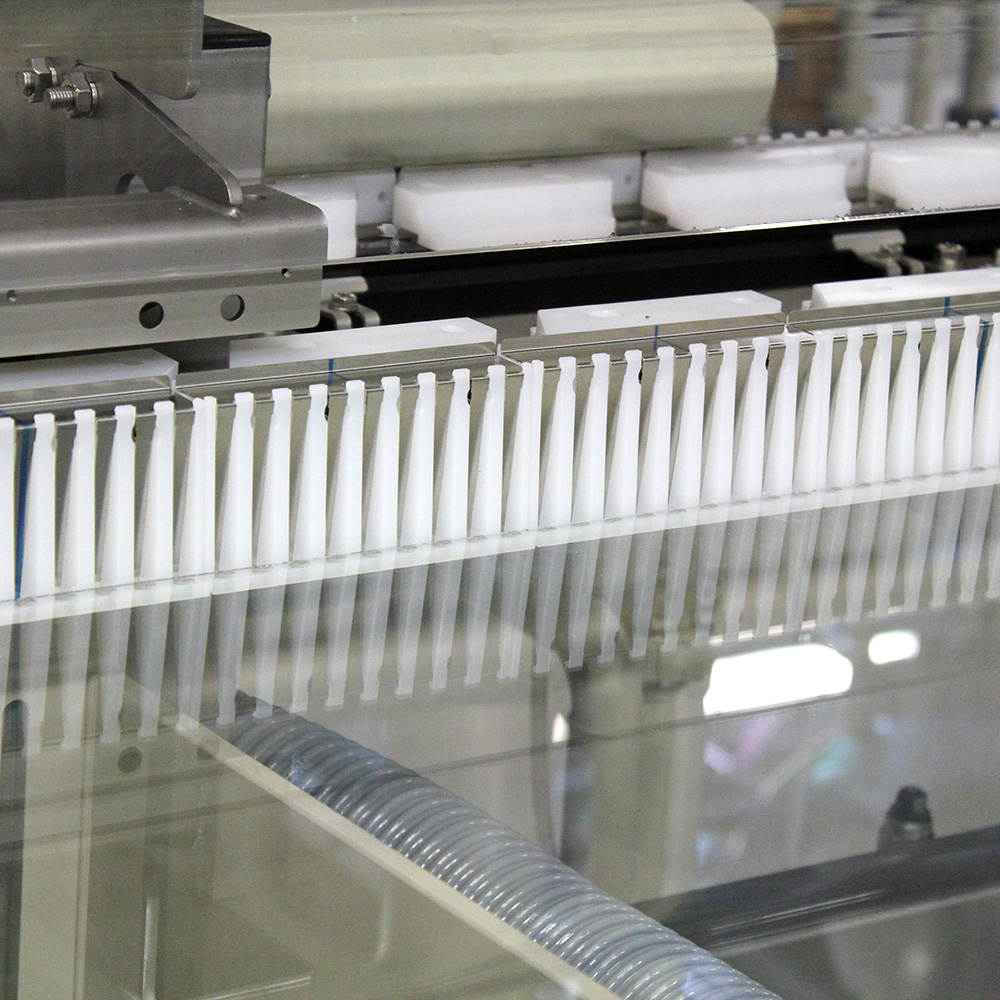

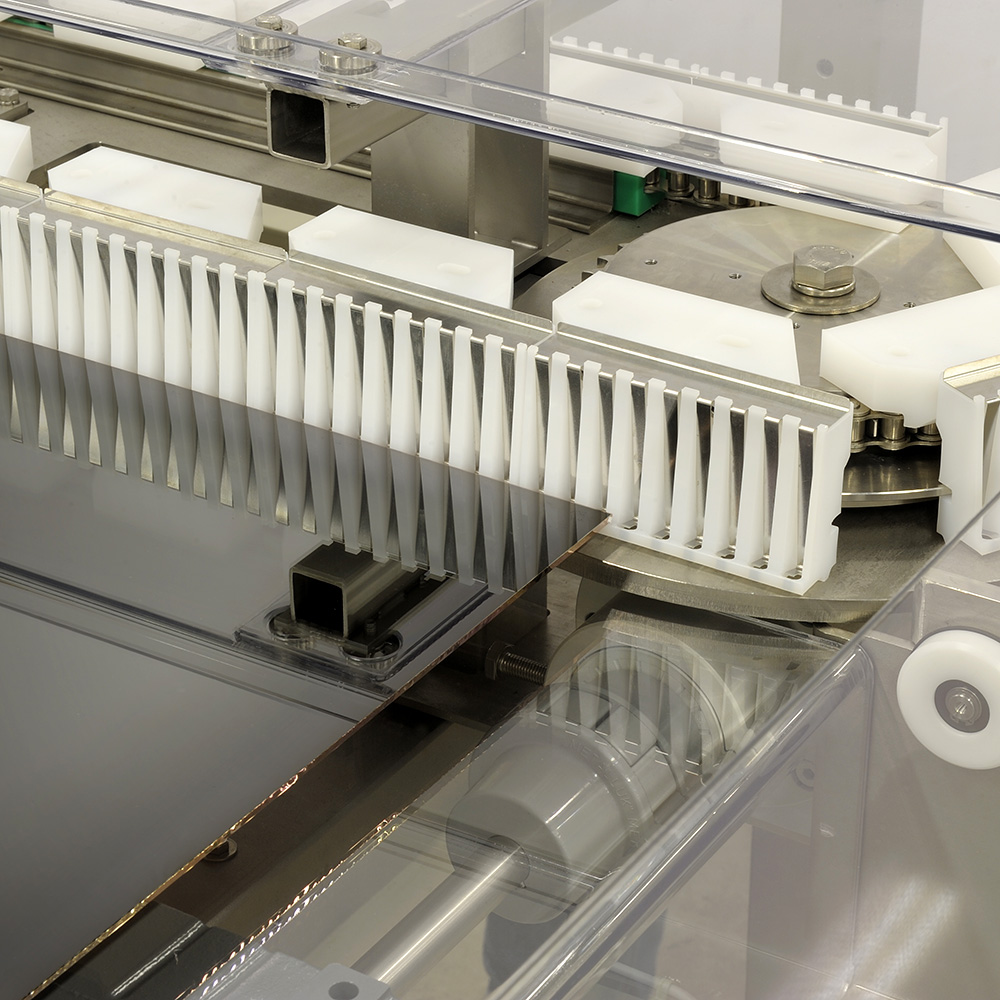

| Transport system | Patented contact transport |
